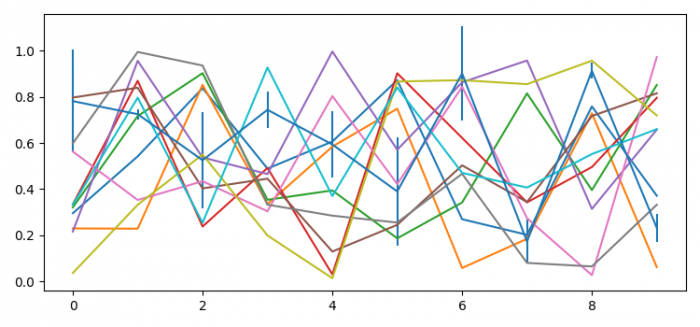

如何使用Matplotlib强制呈现误差条? 要使用matplotlib强制呈现误差条,我们可以执行以下步骤- 设置图形大小并调整子图之间以及周围的填充。 使用 figure() 方法创建新图或激活现有图。 使用 gca() 方法获取当前轴。 绘制线列表。 使用附加误差条绘制 y 相对于 x 的线和/或标记。 要显示图形,请使用 show() 方法。 示例 import matplotlib.pyplot as plt import numpy as np plt.rcParams["figure.figsize"] = [7.50, 3.50] plt.rcParams["figure.autolayout"] = True fig = plt.figure() ax = plt.gca() [ax.plot(np.random.rand(10)) for j in range(10)] ax.errorbar(range(10), np.random.rand(10), yerr=.3 * np.random.rand(10)) plt.show() PythonCopy 输出
