在Matplotlib中如何制作联合双变量分布?
在Matplotlib中,我们可以使用 scatter 方法来制作联合双变量分布。
步骤
- 设置图形大小和子图之间以及周围的填充。
-
使用numpy创建x和y数据点。
-
创建一个图形和一组子图。
-

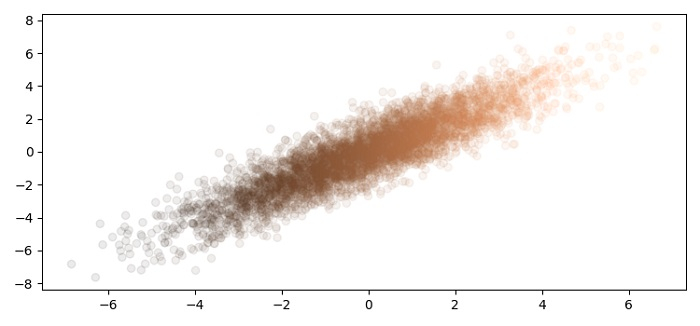

使用 scatter() 方法绘制x和y。
-
要显示图形,请使用 show() 方法。
示例
import numpy as np
from matplotlib import pyplot as plt
plt.rcParams["figure.figsize"] = [7.50, 3.50]
plt.rcParams["figure.autolayout"] = True
x = 2 * np.random.randn(5000)
y = x + np.random.randn(5000)
fig, ax = plt.subplots()
_ = ax.scatter(x, y, alpha=0.08, cmap="copper", c=x)
plt.show()
