如何在Matplotlib(Python)中标记一条线?
要在matplotlib中标记一条线,我们可以在 plot() 方法的参数中使用 label ,
步骤
- 设置图形大小并调整子图之间和周围的填充。
- 使用 plot() 方法绘制带有 label=”line1″ 的线条1。
- 使用 plot() 方法绘制带有 label=”line2″ 的线条2。
- 要在图形上放置图例,请使用 legend() 方法。
- 要显示图形,请使用 show() 方法。

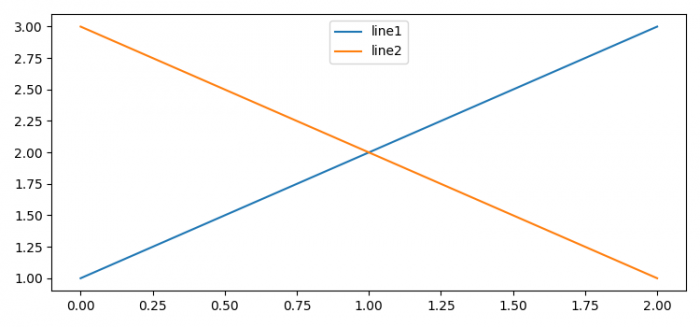

示例
from matplotlib import pyplot as plt
plt.rcParams["figure.figsize"] = [7.50, 3.50]
plt.rcParams["figure.autolayout"] = True
line1, = plt.plot([1, 2, 3], label="line1")
line2, = plt.plot([3, 2, 1], label="line2")
leg = plt.legend(loc='upper center')
plt.show()
