Angular PrimeNG表的水平滚动

Angular PrimeNG是一个开源的库，由原生的Angular UI组件组成，用来做伟大的造型，这个框架用来制作响应式网站，非常容易。在这篇文章中，我们将看到Angular PrimeNG表的水平滚动。

表组件用于以表格的形式向用户显示一些数据。当表格超过视口的宽度时，可以通过设置scrollable属性为 “true “和scrollDirection属性为 “horizontal “来启用水平滚动，同时给列提供固定宽度。

语法:

<p-table [value]="cars" **[scrollable]="true"**
    **scrollDirection="horizontal"** >
    <ng-template pTemplate="header">
        <tr>
            <th style="width: 300px">Car</th>
            <th style="width: 300px">Company</th>
            <th style="width: 300px">Vehicle Number</th>
            ...
        </tr>
    </ng-template>
    <ng-template pTemplate="body" let-car>
        <tr>
            <td style="width: 300px">{{car.name}}</td>
            <td style="width: 300px">{{car.company}}</td>
            <td style="width: 300px">{{car.number}}</td>
            ...
        </tr>
    </ng-template>
</p-table>

创建Angular应用程序并安装模块：

第1步：使用以下命令创建一个Angular应用程序。

ng new myapp

第2步：创建你的项目文件夹即myapp后，使用以下命令移动到它。

cd myapp

第3步在你给定的目录中安装PrimeNG。

npm install primeng --save
npm install primeicons --save

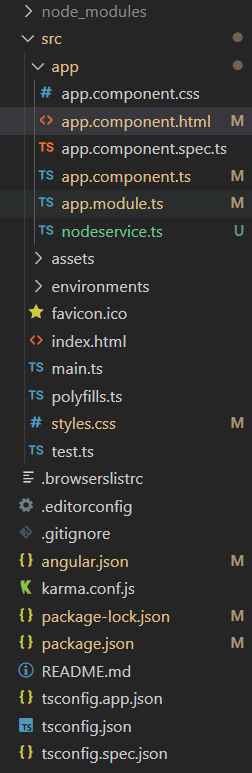

项目结构：完成上述步骤后，项目结构将如下所示。

Angular PrimeNG表的水平滚动

Project Structure

例子1：这个例子说明了如何在一个宽度超过视口的表格上启用水平滚动。

<div style="text-align: center">
    <h2 style="color: green">GeeksforGeeks</h2>
    <h4>Angular PrimeNG Table Horizontal Scrolling</h4>

    <p-table
        [value]="cars"
        [scrollable]="true"
        scrollDirection="horizontal">
        <ng-template pTemplate="header">
            <tr>
                <th style="width: 300px">Car</th>
                <th style="width: 300px">Company</th>
                <th style="width: 300px">Vehicle Number</th>
                <th style="width: 300px">Manufactured year</th>
                <th style="width: 300px">KM Driven</th>
                <th style="width: 300px">Price</th>
                <th style="width: 300px">Rating</th>
            </tr>
        </ng-template>
        <ng-template pTemplate="body" let-car>
            <tr>
                <td style="width: 300px">{{car.name}}</td>
                <td style="width: 300px">{{car.company}}</td>
                <td style="width: 300px">{{car.number}}</td>
                <td style="width: 300px">{{car.manufacturedYear}}</td>
                <td style="width: 300px">{{car.kmDriven}}</td>
                <td style="width: 300px">{{car.price}}</td>
                <td style="width: 300px">{{car.rating}}</td>
            </tr>
        </ng-template>
    </p-table>
</div>

import { Component } from '@angular/core';

interface Car {
    name: String,
    company: String,
    number: String,
    manufacturedYear: Number,
    kmDriven: Number,
    price: String,
    rating: Number
}


@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
})

export class AppComponent {
    cars: Car[] = [];

    ngOnInit() {
        this.cars = [
            {
                name: "Creta",
                company: "Hyundai",
                number: "MH01BHXX01",
                manufacturedYear: 2016,
                kmDriven: 23456,
                price: "11 Lakhs",
                rating: 4.0
            },
            {
                name: "Audi Q7",
                company: "Audi",
                number: "UP76APXXX2",
                manufacturedYear: 2006,
                kmDriven: 11342,
                price: "90.2 Lakhs",
                rating: 4.7
            },
            {
                name: "Venue",
                company: "Hyundai",
                number: "MH11AHXX01",
                manufacturedYear: 2019,
                kmDriven: 45456,
                price: "7.8 Lakhs",
                rating: 3.5
            },
            {
                name: "Audi A4",
                company: "Hyundai",
                number: "BR01SD1XX0",
                manufacturedYear: 1997,
                kmDriven: 18446,
                price: "49.4 Lakhs",
                rating: 4.5
            },
            {
                name: "Audi e-tron",
                company: "Audi",
                number: "MP11BPXX00",
                manufacturedYear: 2020,
                kmDriven: 9901,
                price: "1.2 Crore",
                rating: 4.9
            },
        ];
    }
}

import { NgModule } from '@angular/core';
import { BrowserModule }
    from '@angular/platform-browser';
import { BrowserAnimationsModule }
    from '@angular/platform-browser/animations';
import { AppComponent } from './app.component';
import { TableModule } from 'primeng/table';

@NgModule({
    imports: [
        BrowserModule,
        BrowserAnimationsModule,
        TableModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
})

export class AppModule { }

运行应用程序：

从你的项目根部执行下面的命令来运行angular应用程序。

ng serve --open

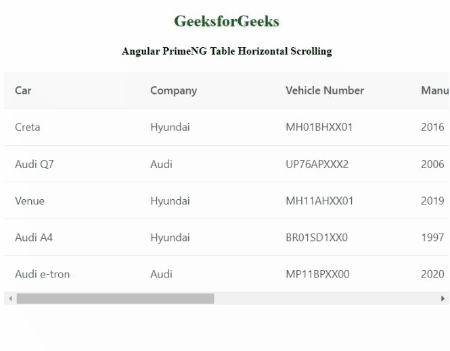

输出:

Angular PrimeNG表的水平滚动

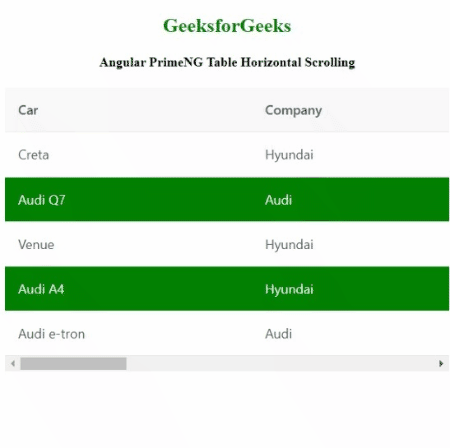

例子2：这个例子显示了一个具有斑马线风格的水平滚动表。

<div style="text-align: center">
    <h2 style="color: green">GeeksforGeeks</h2>
    <h4>Angular PrimeNG Table Horizontal Scrolling</h4>

    <p-table
        [value]="cars"
        [scrollable]="true"
        scrollDirection="horizontal">

        <ng-template pTemplate="header">
            <tr>
                <th style="width: 300px">Car</th>
                <th style="width: 300px">Company</th>
                <th style="width: 300px">Vehicle Number</th>
                <th style="width: 300px">Manufactured year</th>
                <th style="width: 300px">KM Driven</th>
                <th style="width: 300px">Price</th>
                <th style="width: 300px">Rating</th>
            </tr>
        </ng-template>
        <ng-template pTemplate="body" let-car>
            <tr [ngClass]="{ 'even-row' : car.id %2 == 0}">
                <td style="width: 300px">{{car.name}}</td>
                <td style="width: 300px">{{car.company}}</td>
                <td style="width: 300px">{{car.number}}</td>
                <td style="width: 300px">{{car.manufacturedYear}}</td>
                <td style="width: 300px">{{car.kmDriven}}</td>
                <td style="width: 300px">{{car.price}}</td>
                <td style="width: 300px">{{car.rating}}</td>
            </tr>
        </ng-template>
    </p-table>
</div>

import { Component } from '@angular/core';

interface Car {
    id: Number,
    name: String,
    company: String,
    number: String,
    manufacturedYear: Number,
    kmDriven: Number,
    price: String,
    rating: Number
}

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styles: [
        `tr.even-row{
            background-color: green;
            color: white;
        }
        `
    ]
})

export class AppComponent {
    cars: Car[] = [];

    ngOnInit() {
        this.cars = [
            {
                id: 1,
                name: "Creta",
                company: "Hyundai",
                number: "MH01BHXX01",
                manufacturedYear: 2016,
                kmDriven: 23456,
                price: "11 Lakhs",
                rating: 4.0
            },
            {
                id: 2,
                name: "Audi Q7",
                company: "Audi",
                number: "UP76APXXX2",
                manufacturedYear: 2006,
                kmDriven: 11342,
                price: "90.2 Lakhs",
                rating: 4.7
            },
            {
                id: 3,
                name: "Venue",
                company: "Hyundai",
                number: "MH11AHXX01",
                manufacturedYear: 2019,
                kmDriven: 45456,
                price: "7.8 Lakhs",
                rating: 3.5
            },
            {
                id: 4,
                name: "Audi A4",
                company: "Hyundai",
                number: "BR01SD1XX0",
                manufacturedYear: 1997,
                kmDriven: 18446,
                price: "49.4 Lakhs",
                rating: 4.5
            },
            {
                id: 5,
                name: "Audi e-tron",
                company: "Audi",
                number: "MP11BPXX00",
                manufacturedYear: 2020,
                kmDriven: 9901,
                price: "1.2 Crore",
                rating: 4.9
            },
        ];
    }
}

import { NgModule } from '@angular/core';
import { BrowserModule }
    from '@angular/platform-browser';
import { BrowserAnimationsModule }
    from '@angular/platform-browser/animations';
import { AppComponent } from './app.component';
import { TableModule } from 'primeng/table';

@NgModule({
    imports: [
        BrowserModule,
        BrowserAnimationsModule,
        TableModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
})

export class AppModule { }
