如何在HTML 5画布上用鼠标绘制

如何在HTML 5画布上用鼠标绘制

在这篇文章中,我们将探讨一些用鼠标指针在HTML 5画布上绘制的方法。HTML画布实质上是各种图形元素(如正方形、矩形、弧线、图像等)的容器。它为我们提供了对画布内部图形元素进行动画控制的灵活能力。然而,向画布添加功能必须通过JavaScript来完成。

如何在HTML 5画布上用鼠标绘制

  • beginPath() : 每次鼠标左键被点击时,开始一个新的路径。
  • lineWidth : 设置将绘制的线的宽度。
  • strokeStyle : 在这方面,我们将其用于将线的颜色设置为黑色。可以更改此属性以产生不同颜色的线。
  • moveTo() : 将路径的起始位置移动到画布上的指定坐标。
  • lineTo() : 从起始位置创建一条线到指定的坐标。
  • stroke() : 对创建的线进行描边。如果没有这个方法,线将不可见。

示例: 创建一个Canvas元素并添加JavaScript功能。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content=
            "width=device-width, initial-scale=1.0">

    <title>
        Draw with the mouse in a HTML5 canvas
    </title>

    <style>
        * {
            overflow: hidden;
        }
        body {
            text-align: center;
        }
        h1 {
            color: green;
        }
    </style>
</head>

<body>
    <h1>GeeksforGeeks</h1>
    <b>Draw anything you want</b>
    <hr>
    <canvas id="canvas"></canvas>
    <script src="index.js"></script>
</body>

</html>
HTML

JavaScript代码

// wait for the content of the window element
// to load, then performs the operations.
// This is considered best practice.
window.addEventListener('load', ()=>{

    resize(); // Resizes the canvas once the window loads
    document.addEventListener('mousedown', startPainting);
    document.addEventListener('mouseup', stopPainting);
    document.addEventListener('mousemove', sketch);
    window.addEventListener('resize', resize);
});

const canvas = document.querySelector('#canvas');

// Context for the canvas for 2 dimensional operations
const ctx = canvas.getContext('2d');

// Resizes the canvas to the available size of the window.
function resize(){
  ctx.canvas.width = window.innerWidth;
  ctx.canvas.height = window.innerHeight;
}

// Stores the initial position of the cursor
let coord = {x:0 , y:0};

// This is the flag that we are going to use to
// trigger drawing
let paint = false;

// Updates the coordianates of the cursor when
// an event e is triggered to the coordinates where
// the said event is triggered.
function getPosition(event){
  coord.x = event.clientX - canvas.offsetLeft;
  coord.y = event.clientY - canvas.offsetTop;
}

// The following functions toggle the flag to start
// and stop drawing
function startPainting(event){
  paint = true;
  getPosition(event);
}
function stopPainting(){
  paint = false;
}

function sketch(event){
  if (!paint) return;
  ctx.beginPath();

  ctx.lineWidth = 5;

  // Sets the end of the lines drawn
  // to a round shape.
  ctx.lineCap = 'round';

  ctx.strokeStyle = 'green';

  // The cursor to start drawing
  // moves to this coordinate
  ctx.moveTo(coord.x, coord.y);

  // The position of the cursor
  // gets updated as we move the
  // mouse around.
  getPosition(event);

  // A line is traced from start
  // coordinate to this coordinate
  ctx.lineTo(coord.x , coord.y);

  // Draws the line.
  ctx.stroke();
}
JavaScript

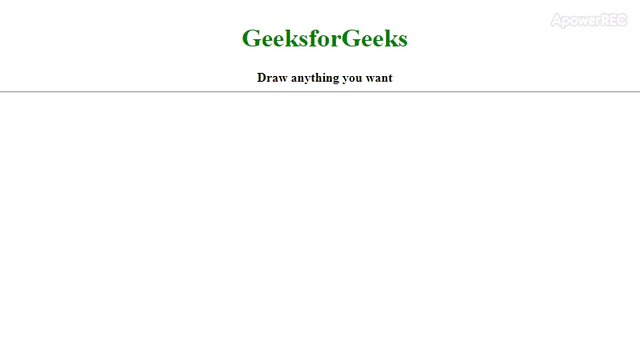

输出:flag 的值为 true 时,函数 sketch() 将被执行。在 beginPath() 之后更新存储在 coord 对象中的坐标很重要,因此调用 getPosition(event) 函数。在将 JavaScript 文件链接到 HTML 文件后,将得到以下代码。

如何在HTML 5画布上用鼠标绘制
