极客教程Angular PrimeNG TreeTable 键盘导航
Angular PrimeNG 是一个开源的框架，有丰富的原生Angular UI组件，用来做很好的造型，这个框架用来做响应式网站，非常方便。本文将向我们展示如何在Angular PrimeNG中使用树表键盘导航。
Angular PrimeNG TreeTable Keyboard Navigation在TreeTable组件中启用键盘导航。因此，使用键盘导航，我们可以很容易地使用键盘方向键在整个表的数据中进行导航。这是用[ttRow]属性完成的。
语法:
<p-treeTable #tableref>
<tr [ttRow]="rowNode"></tr>
</p-treeTable>
创建Angular应用程序和模块安装。
第1步：使用以下命令创建一个Angular应用程序。
ng new appname
第2步：创建你的项目文件夹即appname后，使用以下命令移动到它。
cd appname
步骤3：在你给定的目录中安装PrimeNG。
npm install primeng --save
npm install primeicons --save
项目结构：它将看起来像如下。
Project Structure
例子1：下面是一个简单的例子，演示了Angular PrimeNG TreeTable键盘导航的使用，在这个例子中，我们使用键盘箭头对整个表格进行导航，并使用[ttRow]属性激活导航。
<h2 style="color: green">GeeksforGeeks</h2>
<h4>Angular PrimeNG TreeTable Keyboard Navigation
</h4>
<p-treeTable #myTab [columns]="cols"
[value]="tableData">
<ng-template pTemplate="colgroup" let-columns>
<colgroup>
<col
*ngFor="let col of columns"
ttReorderableColumn
/>
</colgroup>
</ng-template>
<ng-template pTemplate="header" let-columns>
<tr>
<th *ngFor="let col of columns">
{{ col.header }}
</th>
</tr>
</ng-template>
<ng-template
pTemplate="body"
let-rowNode
let-rowData="rowData"
let-columns="columns">
<tr [ttRow]="rowNode">
<td *ngFor="let col of columns; let i = index">
<p-treeTableToggler
[rowNode]="rowNode"
*ngIf="i == 0">
</p-treeTableToggler>
{{ rowData[col.field] }}
</td>
</tr>
</ng-template>
</p-treeTable>
import { Component } from '@angular/core';
import { NodeService } from './nodeservice';
import { TreeNode } from 'primeng/api';
@Component({
selector: 'app-root',
templateUrl: './app.component.html',
})
export class AppComponent {
tableData: TreeNode[] = [];
cols: any[] = [];
constructor(private nodeService: NodeService) { }
ngOnInit() {
this.cols = [
{ field: 'name', header: 'First Name' },
{ field: 'age', header: 'Age' },
];
this.tableData = [
{
data: {
name: 'David',
age: '40',
},
children: [
{
data: {
name: 'Nathan',
age: '16',
},
},
{
data: {
name: 'Shane',
age: '14',
},
},
],
},
{
data: {
name: 'Warner',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'Max',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'Willy',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'Miley',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'Sam',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'James',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
];
}
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { FormsModule } from '@angular/forms';
import { HttpClientModule } from '@angular/common/http';
import { BrowserAnimationsModule }
from '@angular/platform-browser/animations';
import { AppComponent } from './app.component';
import { NodeService } from './nodeservice';
import { TreeTableModule } from 'primeng/treetable';
import { ButtonModule } from 'primeng/button';
import { InputTextModule } from 'primeng/inputtext';
@NgModule({
imports: [
BrowserModule,
BrowserAnimationsModule,
TreeTableModule,
ButtonModule,
InputTextModule,
HttpClientModule,
FormsModule,
],
declarations: [AppComponent],
bootstrap: [AppComponent],
providers: [NodeService],
})
export class AppModule { }

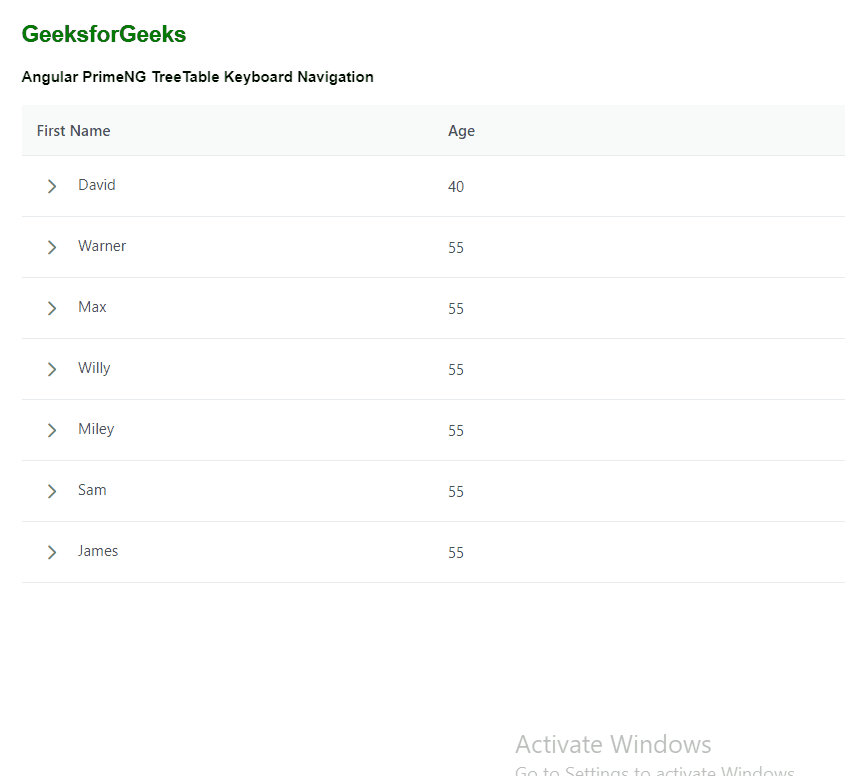

输出:
例子2：我们可以使用键盘导航在TreeTable中深入导航，如下例所示。
<h2 style="color: green">GeeksforGeeks</h2>
<h4>Angular PrimeNG TreeTable Keyboard Navigation</h4>
<p-treeTable #myTab [columns]="cols" [value]="tableData">
<ng-template pTemplate="colgroup" let-columns>
<colgroup>
<col
*ngFor="let col of columns"
ttReorderableColumn
/>
</colgroup>
</ng-template>
<ng-template pTemplate="header" let-columns>
<tr>
<th *ngFor="let col of columns">
{{ col.header }}
</th>
</tr>
</ng-template>
<ng-template
pTemplate="body"
let-rowNode
let-rowData="rowData"
let-columns="columns">
<tr [ttRow]="rowNode">
<td *ngFor="let col of columns; let i = index">
<p-treeTableToggler
[rowNode]="rowNode" *ngIf="i == 0">
</p-treeTableToggler>
{{ rowData[col.field] }}
</td>
</tr>
</ng-template>
</p-treeTable>
import { Component, OnInit } from '@angular/core';
import { NodeService } from './nodeservice';
import { TreeNode } from 'primeng/api';
@Component({
selector: 'app-root',
templateUrl: './app.component.html',
})
export class AppComponent {
tableData: TreeNode[] = [];
cols: any[] = [];
constructor(private nodeService: NodeService) { }
ngOnInit() {
this.cols = [
{ field: 'name', header: 'First Name' },
{ field: 'age', header: 'Age' },
];
this.tableData = [
{
data: {
name: 'David',
age: '40',
},
children: [
{
data: {
name: 'Nathan',
age: '16',
},
children: [
{
data: {
name: 'Abe',
age: '12',
},
},
{
data: {
name: 'Ksi',
age: '12',
},
},
],
},
{
data: {
name: 'Shane',
age: '14',
},
},
],
},
{
data: {
name: 'Warner',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'Max',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'Willy',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'Miley',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'Sam',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
{
data: {
name: 'James',
age: '55',
},
children: [
{
data: {
name: 'Michelle',
age: '20',
},
},
{
data: {
name: 'Charlie',
age: '24',
},
},
],
},
];
}
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { FormsModule } from '@angular/forms';
import { HttpClientModule } from '@angular/common/http';
import { BrowserAnimationsModule }
from '@angular/platform-browser/animations';
import { AppComponent } from './app.component';
import { NodeService } from './nodeservice';
import { TreeTableModule } from 'primeng/treetable';
import { ButtonModule } from 'primeng/button';
import { InputTextModule } from 'primeng/inputtext';
@NgModule({
imports: [
BrowserModule,
BrowserAnimationsModule,
TreeTableModule,
ButtonModule,
InputTextModule,
HttpClientModule,
FormsModule,
],
declarations: [AppComponent],
bootstrap: [AppComponent],
providers: [NodeService],
})
export class AppModule { }

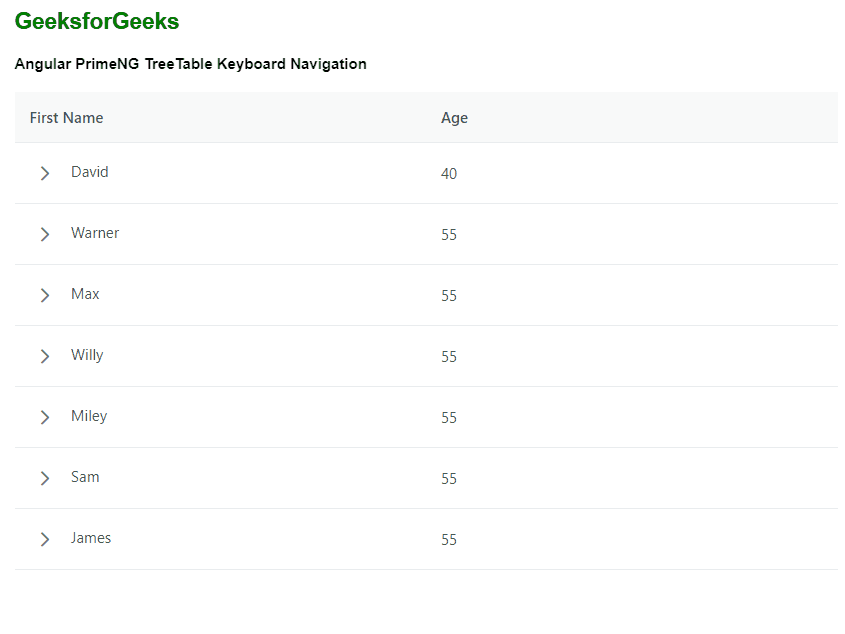

输出:
