极客教程使用JavaScript的Shell Sort可视化器
Shell Sort主要是插入排序的一种变体。Shell Sort的思想是允许交换相隔较远的元素。为了了解更多，请参考Shell Sort。
通过可视化而不是冗长的代码可以更容易地理解类似Shell Sort这样的算法。在本文中，使用HTML、CSS和JavaScript实现了Shell Sort可视化器。
先决条件：
- Shell Sort
- 基本的HTML、CSS和JavaScript知识
- JavaScript的promises
- JavaScript的异步/等待函数
方法：
- 按钮 生成新数组 使用Math.random()函数生成一个随机值的数组，并以柱形的高度显示该值。
- 使用不同颜色表示未排序（天蓝色）、比较过的元素（深蓝色）和已排序的元素（浅绿色）。
- 按钮 Shell Sort 使用选择排序算法对元素进行排序。
- 最后，元素被排序。
示例： 点击“生成新数组”按钮生成一个新的随机数组。点击“Shell Sort”按钮进行可视化。
HTML
<!DOCTYPE html>
<html lang="en">
<!-- Head Section -->
<head>
<meta charset="UTF-8" />
<meta name="viewport"
content="width=device-width,
initial-scale=1.0" />
<meta http-equiv="X-UA-Compatible"
content="ie=edge" />
<!-- title -->
<title>Shell Sort Visualizer using JavaScript</title>
<!-- linking style.css -->
<link href="style.css" rel="stylesheet" />
</head>
<!-- Body Section -->
<body>
<section class="head">Shell Sort</section>
<section class="data-container"></section>
<section id="ele"></section>
<div style="margin: auto; width: fit-content">
<!-- "Generate New Array" button -->
<button class="btn1" onclick="generate()"
id="Button1">
Generate New Array
</button>
<!-- "Shell Sort" button -->
<button class="btn2" onclick="ShellSort(),disable()"
id="Button2">Shell Sort</button>
</div>
<!-- linking script.js -->
<script src="script.js"></script>
</body>
</html>
文件名：style.css
css
.mySlides {
display: none;
}
body {
background-color: rgb(255, 235, 211);
font-family: Verdana, sans-serif;
}
.head {
margin-top: 20px;
margin-right: 20vw;
margin-left: 20vw;
text-align: center;
font-size: 30px;
background-color: #6f459e;
color: white;
border-radius: 19px;
font-weight: bolder;
}
.data-container {
width: 600px;
height: 364px;
position: relative;
margin: 0 auto;
}
.bar {
width: 28px;
position: absolute;
left: 0;
bottom: 0;
background-color: rgb(0, 183, 255);
transition: 0.2s all ease;
}
.bar__id {
position: absolute;
top: -24px;
width: 100%;
text-align: center;
}
.btn1 {
padding: 12px;
font-weight: bolder;
background-color: #6f459e;
border-radius: 10px;
color: white;
font-size: 16px;
border: white;
margin-top: 1vw;
margin-right: 1vw;
}
.btn2 {
padding: 12px;
font-weight: bolder;
background-color: #6f459e;
border-radius: 10px;
color: white;
font-size: 16px;
border: white;
}
#ele {
text-align: center;
height: 35px;
}
文件名：script.js
javascript
const container = document.querySelector(".data-container");
// Function to generate bars
function generatebars(num = 20) {
// For loop to generate 20 bars
for (let i = 0; i < num; i += 1) {
// To generate random values from 1 to 100
const value = Math.floor(Math.random() * 100) + 1;
// To create element "div"
const bar = document.createElement("div");
// To add class "bar" to "div"
bar.classList.add("bar");
// Provide height to the bar
bar.style.height = `{value * 3}px`;
// Translate the bar towards positive X axis
bar.style.transform = `translateX({i * 30}px)`;
// To create element "label"
const barLabel = document.createElement("label");
// To add class "bar_id" to "label"
barLabel.classList.add("bar__id");
// Assign value to "label"
barLabel.innerHTML = value;
// Append "Label" to "div"
bar.appendChild(barLabel);
// Append "div" to "data-container div"
container.appendChild(bar);
}
}
// Asynchronous function to perform "Shell Sort"
async function ShellSort(delay = 600) {
let bars = document.querySelectorAll(".bar");
for (var i = 10; i > 0; i = Math.floor(i / 2)) {
// To pause the execution of code
// for 300 milliseconds
await new Promise((resolve) =>
setTimeout(() => {
resolve();
}, 300)
);
for (var j = i; j < 20; j++) {
var temp = parseInt(
bars[j].childNodes[0].innerHTML);
var k;
var temp1 = bars[j].style.height;
var temp2 = bars[j].childNodes[0].innerText;
for (
k = j;
k >= i && parseInt(bars[k - i]
.childNodes[0].innerHTML) > temp;
k -= i
) {
bars[k].style.height
= bars[k - i].style.height;
bars[k].childNodes[0].innerText =
bars[k - i].childNodes[0].innerText;
// To pause the execution of code
// for 300 milliseconds
await new Promise((resolve) =>
setTimeout(() => {
resolve();
}, 300)
);
}
// Provide darkblue color to the jth bar
bars[j].style.backgroundColor = "darkblue";
// Provide darkblue color to the kth bar
bars[k].style.backgroundColor = "darkblue";
bars[k].style.height = temp1;
bars[k].childNodes[0].innerText = temp2;
// To pause the execution of code for
// 300 milliseconds
await new Promise((resolve) =>
setTimeout(() => {
resolve();
}, 600)
);
// Provide skyblue color to the jth bar
bars[j].style.backgroundColor = "rgb(0, 183, 255)";
// Provide skyblue color to the kth bar
bars[k].style.backgroundColor = "rgb(0, 183, 255)";
// To pause the execution of code for
// 300 milliseconds
await new Promise((resolve) =>
setTimeout(() => {
resolve();
}, 300)
);
}
}
for (var x = 0; x < 20; x++) {
bars[x].style.backgroundColor
= "rgb(49, 226, 13)";
}
// To enable the button "Generate New Array"
// after final(sorted)
document.getElementById("Button1")
.disabled = false;
document.getElementById("Button1")
.style.backgroundColor = "#6f459e";
// To enable the button "Shell Sort"
// after final(sorted)
document.getElementById("Button2").disabled = false;
document.getElementById("Button2")
.style.backgroundColor = "#6f459e";
}
// Call "generatebars()" function
generatebars();
// Function to generate new random array
function generate() {
window.location.reload();
}
// Function to disable the button
function disable() {
// To disable the button "Generate New Array"
document.getElementById("Button1").disabled = true;
document.getElementById("Button1")
.style.backgroundColor = "#d8b6ff";
// To disable the button "Shell Sort"
document.getElementById("Button2").disabled = true;
document.getElementById("Button2")
.style.backgroundColor = "#d8b6ff";
}

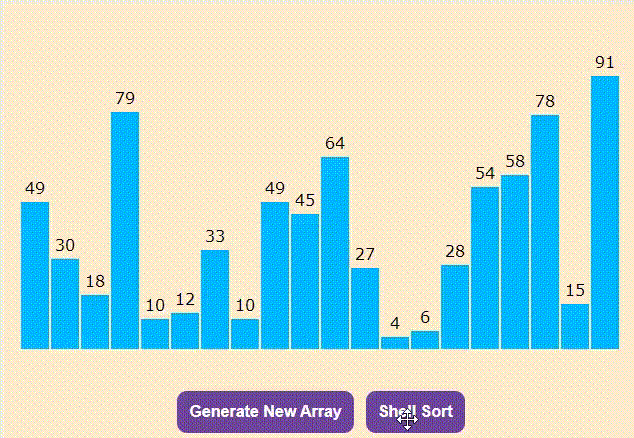

输出：
