JavaScript 创建时间线

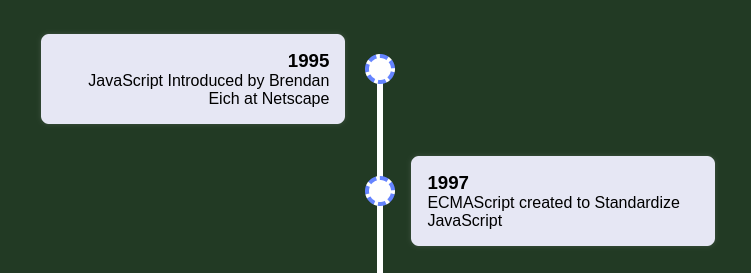

在本文中，我们将介绍如何使用HTML CSS和JavaScript创建时间线。时间线是事件以及它们发生的时间的视觉表示。完成后，JavaScript时间线将如下所示：

JavaScript 创建时间线

先决条件

此项目所需的先决知识包括：

方法

完成任务的方法如下：

使用HTML标签（如divs、ul和li）以及定义好的类名创建基本的时间轴结构。
使用CSS属性（如背景颜色、填充、边距、定位等）为项目添加样式。
在JavaScript中创建一个名为timelineArray的数组以存储时间和事件。
使用JavaScript数组的map()方法遍历并渲染HTML中的时间轴项，使用HTML DOM方法（如createElement和appendChild等）。

示例： 此示例演示了使用HTML、CSS和JS的基本JavaScript时间轴。

HTML

<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8" />
    <title>JavaScript Timeline</title>
    <meta name="viewport"
          content="width=device-width,
                   initial-scale=1" />
    <link rel="stylesheet"
          href="style.css" />
</head>

<body>
    <ul class="timeline"
        id="menu"></ul>
    <script src="script.js"></script>
</body>

</html>

CSS

/* Styling universal selector */
* {
    margin: 0;
    padding: 0;
    box-sizing: border-box;
}

/* Style body element */
body {
    min-height: 100vh;
    display: flex;
    align-items: center;
    text-align: center;
    justify-content: center;
    background: hsl(113, 19%, 18%);
    font-family: "Poppins", sans-serif;
}

/* Styling card container */
.card {
    max-width: 20rem;
    background: #e5e9f3;
    margin: 0 1rem;
    padding: 1rem;
    box-shadow: 0 0 5px rgba(191, 189, 189, 0.2);
    width: 95%;
    border-radius: 0.5rem;
    margin: 2%;
    margin-bottom: 10%;
}

.timeline {
    position: relative;
    max-width: 1200px;
    margin: 0 auto;
}


.timeline::after {
    content: "";
    position: absolute;
    width: 6px;
    background-color: white;
    top: 28px;
    bottom: 75px;
    left: 50%;
    margin-left: -3px;
}

ul {
    list-style: none;
}

.right {
    text-align: left;
    position: relative;
    right: -185px;
    list-style: none;
}

.left {
    text-align: right;
    position: relative;
    left: -185px;
    list-style: none;
}

.dotRight::after {
    content: "";
    position: absolute;
    width: 22px;
    height: 22px;
    left: -40px;
    background-color: white;
    border: 4px dashed #559cff;
    top: 20px;
    border-radius: 50%;
    z-index: 1;
}

.dotLeft::after {
    content: "";
    position: absolute;
    width: 22px;
    height: 22px;
    right: -40px;
    background-color: white;
    border: 4px dashed #559cff;
    top: 20px;
    border-radius: 50%;
    z-index: 1;
}

Javascript

const timelineArray = [
    {
        year: "1995",
        eventt:
"JavaScript Introduced by Brendan Eich at Netscape",
    },
    {
        year: "1997",
        eventt:
"ECMAScript created to Standardize JavaScript",
    },
    {
        year: "1999",
        eventt:
"ECMAScript3: Introduction of RegEx, try-catch",
    },
    {
        year: "2009",
        eventt:
"ECMAScript5: strict mode, Object method",
    },
    {
        year: "2015",
        eventt:
"ES6: introduced classes, Arraow functons, let/const variables ",
    },
    {
        year: "2016 Onwards",
        eventt:
"introducing features like async/await, spread/rest operators etc.",
    },
];

function gfg() {
    timelineArray.map((e, i) => {
        let clss = "right";
        let dot = "dotRight";
        if (i % 2 == 0) {
            clss = "left";
            dot = "dotLeft";
        }
        const year = document.createElement("h3");
        year.innerText = e.year;
        const eventt = document.createElement("p");
        eventt.innerText = e.eventt;
        const item = document.createElement("div");
        item.appendChild(year);
        item.appendChild(eventt);
        item.classList.add("card");
        const contain = document.createElement("div");
        const li = document.createElement("li");
        contain.classList.add(dot);
        contain.appendChild(item);
        li.appendChild(contain);
        li.classList.add(clss);
        document.getElementById("menu").appendChild(li);
    });
}
gfg();

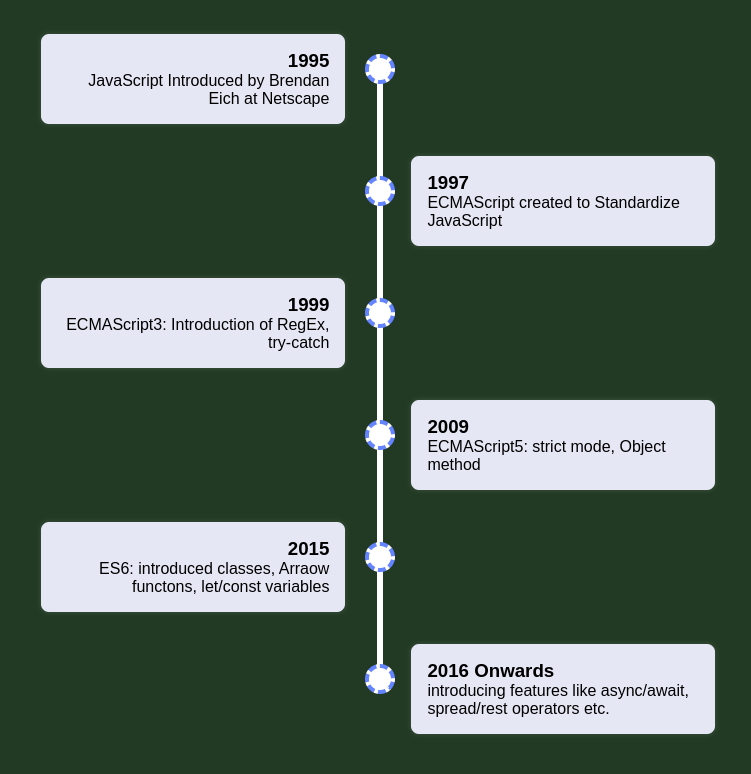

输出：

JavaScript 创建时间线
