Python – 在折线图中绘制Pandas DataFrame

要在折线图中绘制DataFrame，请使用 plot() 方法并将 kind 参数设置为line。让我们首先导入所需的库-

import pandas as pd
import matplotlib.pyplot as mp

以下是我们的团队记录数据-

data = [["Australia", 2500, 2021],["Bangladesh", 1000, 2021],["England", 2000, 2021],["India", 3000, 2021],["Srilanka", 1500, 2021]]

将数据设置为Pandas DataFrame并添加列-

dataFrame = pd.DataFrame(data, columns=["Team","Rank_Points", "Year"])

在折线图中绘制Pandas DataFrame。我们将“kind”参数设置为“line”-

dataFrame.plot(x="Team", y=["Rank_Points","Year" ], kind="line", figsize=(10, 9))

示例

以下是代码-

import pandas as pd
import matplotlib.pyplot as mp

#我们的数据
data = [["Australia", 2500, 2021],["Bangladesh", 1000, 2021],["England", 2000, 2021],["India", 3000, 2021],["Srilanka", 1500, 2021]]

# dataframe
dataFrame = pd.DataFrame(data, columns=["Team","Rank_Points", "Year"])

#绘制dataframe
dataFrame.plot(x="Team", y=["Rank_Points","Year" ], kind="line", figsize=(10, 9))

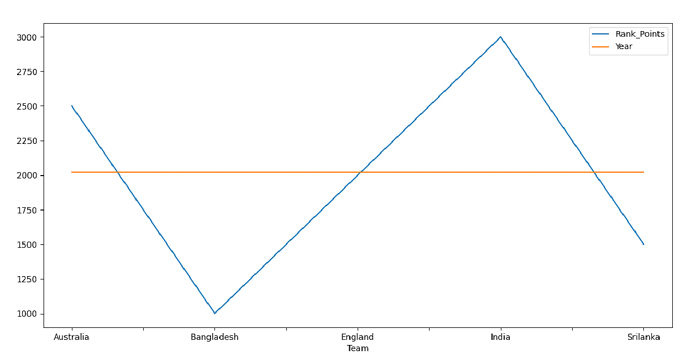

#显示折线图
mp.show()
